Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Hydraulic DTH drilling rig for mining

Surface DTH drilling rig open-pit

Separated DTH drilling rig hydraulic

원래 장소:

중국

브랜드 이름:

RanCheng

인증:

CE, ISO 9001:2000

모델 번호:

RCZ420T

문의하기

요구 인용문

제품 세부 정보

엔진:

유 차이 YC4A100/70 kW, 중국 II 유 차이 YC4DK100/73.5 kW, 중국 III

디젤 탱크 크기:

70L

구멍 깊이:

30m

드릴 파이프:

φ76*3000 mm

구멍 직경:

φ90-138 mm

DTH는 칩니다:

4"/5"

회전 토크 (최대):

3200 N.m

강조하다:

Hydraulic DTH drilling rig for mining

Surface DTH drilling rig open-pit

Separated DTH drilling rig hydraulic

지불 및 배송 조건

최소 주문 수량

가격

US $18000-22000

포장 세부 사항

표준 배송

배달 시간

10-15 근무일

지불 조건

T/T, 웨스턴 유니온

공급 능력

달 당 100개 세트

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

최고의 가격을 얻으십시오

비디오

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

최고의 가격을 얻으십시오

비디오

통합 표면 DTH 드릴링 리그 광산용 블라스트홀 드릴링 리그 머신

최고의 가격을 얻으십시오

비디오

유차이 YC6J220 162 KW용 자동 통합 유압 DTH 발파공 드릴링 장비

최고의 가격을 얻으십시오

문의하기

지금 접촉하세요

제품 설명

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Name: Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCZ420T
Price: 20,000.00 USD
Availability: InStock

Product Overview

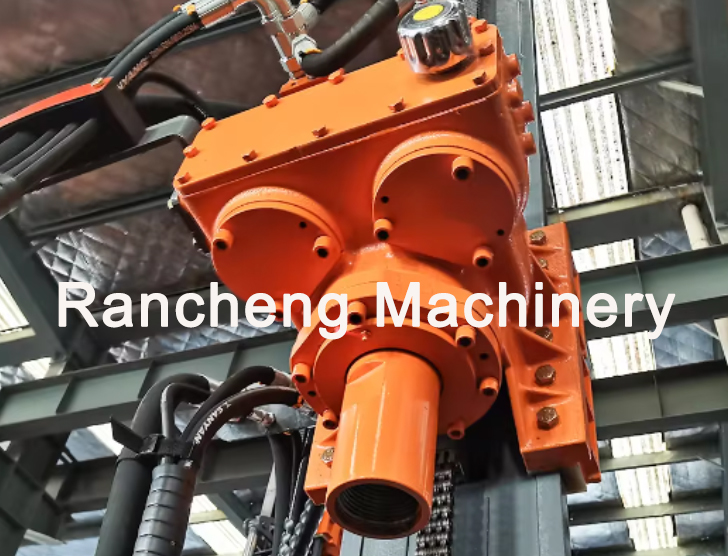

The RCZ420T hydraulic DTH drilling rig is equipped with a dual-motor rotary drill head and a multi-way adjustable rotary speed valve.

With a rotation torque of up to 3200N·m, it meets the high drilling requirements for large 76mm drill rods and 138mm drill diameters.

It has a 3m propulsion length, enabling wider and deeper drilling operations.

Featuring construction-grade crawlers, a piston motor, and a leveling function, it has better climbing capacity and off-road performance. The 420 model can adapt to more complex construction site conditions.

It can drill vertical holes on sloped surfaces, meeting different construction requirements.

Technical Specifications

Model	RCZ420T
Engine	Yuchai YC4A100/70 kW, China II Yuchai YC4DK100/73.5 kW, China III
Diesel tank volume	70 L
Weight	5280 kg
Dimension	542023082500 mm
Hole depth	30 m
Drill pipe	φ76*3000 mm
Hole diameter	φ90-138 mm
DTH hammer	4"/5"
Rotation torque (max.)	3200 N.m
Feed force	20 kN
Pull up force	45 kN
Feed type	Chain/cylinder
Gradient	25°
Track frame osciliation	+/- 10°
Tramming speed	3 km/h

Key Features

The dual-motor rotary drill head, with larger torque and higher rotation speed, meets the drilling needs for 76mm drill rods and 130mm drill diameters.

Construction-grade crawlers and a piston motor ensure more reliable machine performance and better traveling capabilities, allowing it to better adapt to complex ground conditions in surface mining drilling operations.

The centralized control panel is easy to operate, enhancing the efficiency, safety, and comfort of drilling operations.

The newly added leveling function gives the machine better climbing capacity and off-road performance, enabling it to handle different construction environments more effectively. The 420 model can also drill vertical holes on sloped surfaces, meeting various construction needs.

Applications

This RCZ420T hydraulic DTH drilling rig is widely used in open-pit mining blast hole drilling, quarry blast hole drilling, highway blast hole drilling, water conservancy projects, power station construction, railway construction, and other construction drilling operations.

Product Images

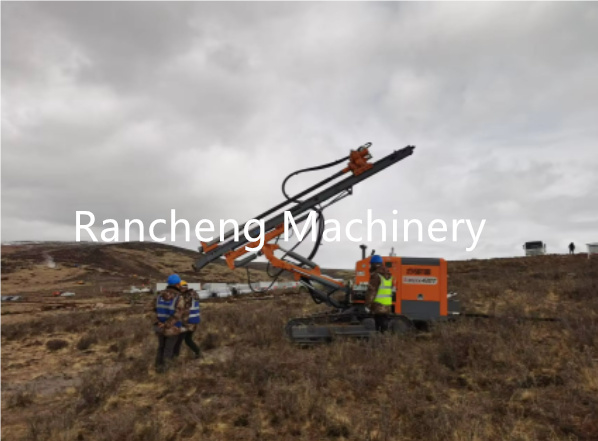

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 0

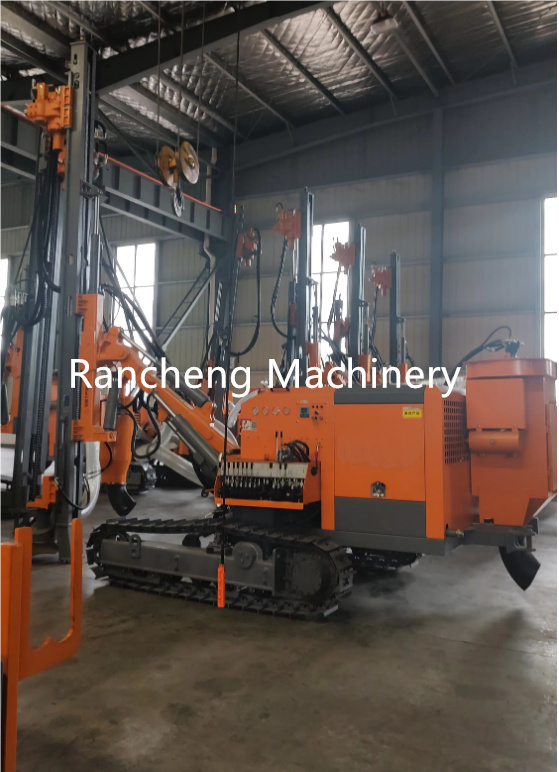

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 1

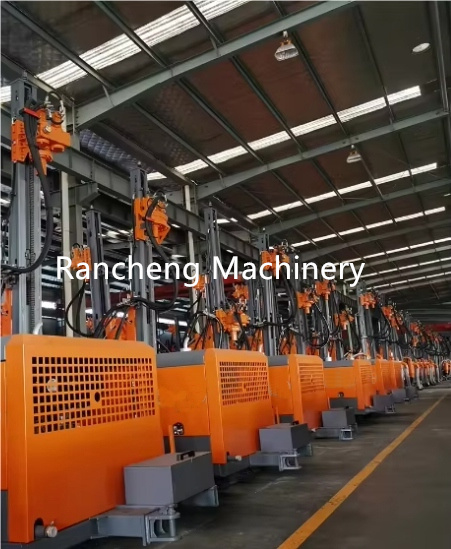

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 2

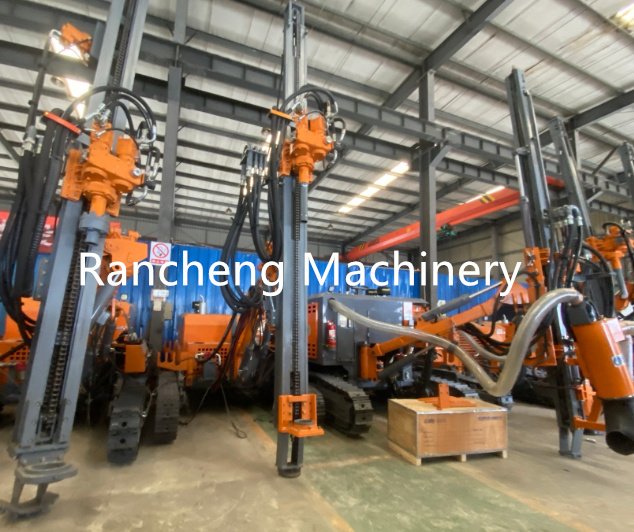

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 3

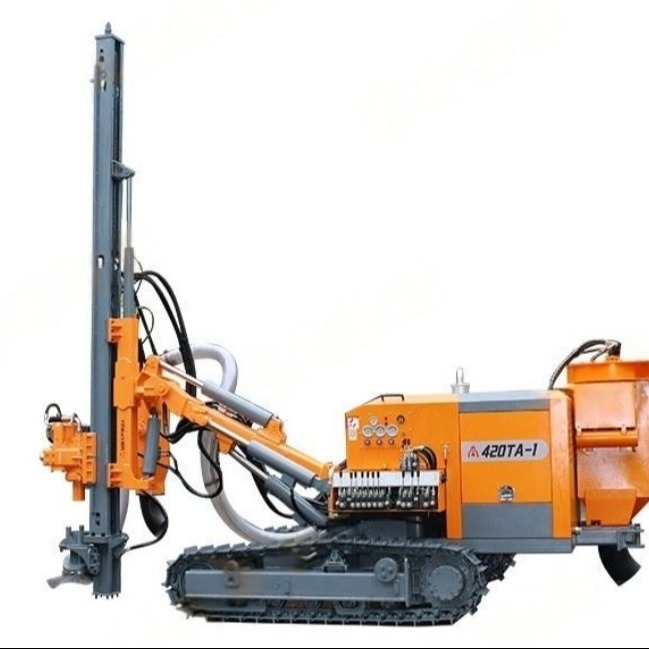

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 4
