원래 장소:
중국
브랜드 이름:
RanCheng
인증:
CE, ISO 9001:2000
모델 번호:
RCF220W
Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor
Machine Introduction
Our RCF220W wheeled water well drilling rig is a lightweight, efficient and versatile drilling equipment. The rig is mainly suitable for industrial and civil drilling, geothermal drilling, and has the advantages of compact structure, fast drilling speed, flexible movement and wide application range. Pneumatic water well drilling rigs are especially suitable for water extraction operations in mountainous areas and rock formations.
Made of high-quality materials, with a stylish and compact design, the drilling rig is more efficient, has a lower failure rate, is more economical and durable, and has a high overall cost performance. Our water drilling rigs have received positive feedback from most customers and have been truly verified by the market.
Technical Parameters
| Bore diameter(Hammer) | 90-300mm |
| Bore depth | 220m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 1m,2m,3m |
| Lifting force | 13T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 24m/min |
| Fast feeding speed | 35m/min |
| Max torque of rotary | 3400-4700Nm |
| Rotary speed | 45-70r/min |
| Hoisting force of winch | 1.4T |
| Mud Pump flow | 250L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4×1.75×2.25M |
| Weight | 5500Kg |
| Diesel engine | 65KW Quanchai engine |
Application
The rig is versatile and can be used with air compressors, mud pumps, and even dry hydraulic drilling methods. The rig is not only designed for water well drilling, but can also be used under various conditions depending on the purpose of the hole.
It is widely used in industrial and agricultural water conservancy projects, test wells and other exploration drillings. It is especially suitable for geothermal heating drilling, and is also suitable for various projects such as engineering foundation reinforcement and loose gravel rock drilling.

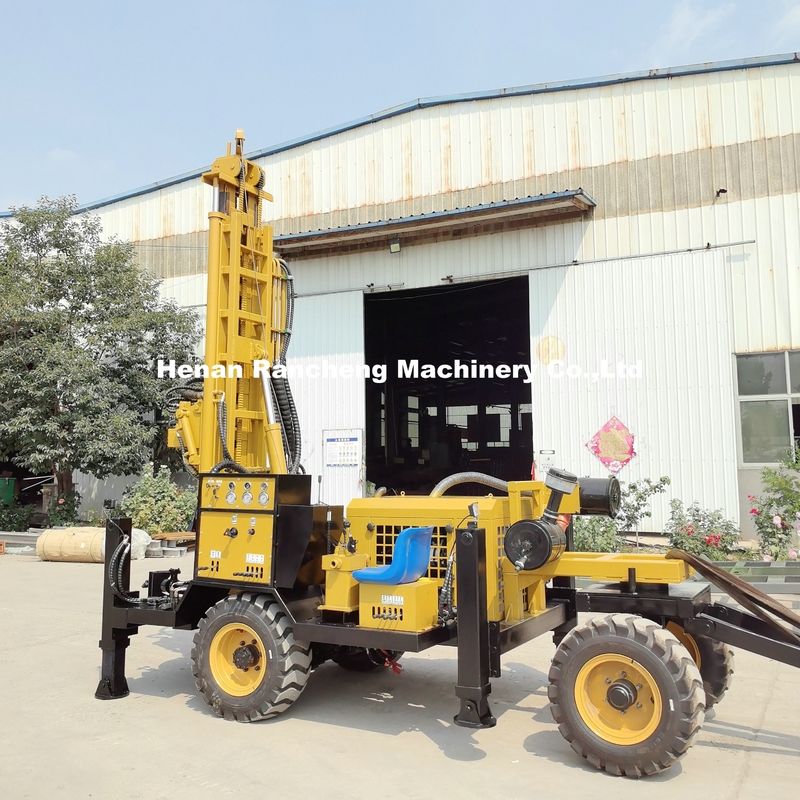

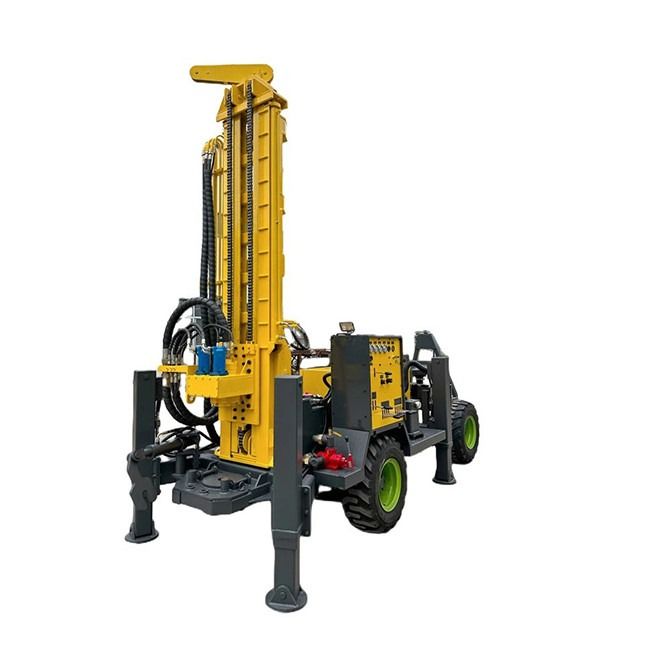

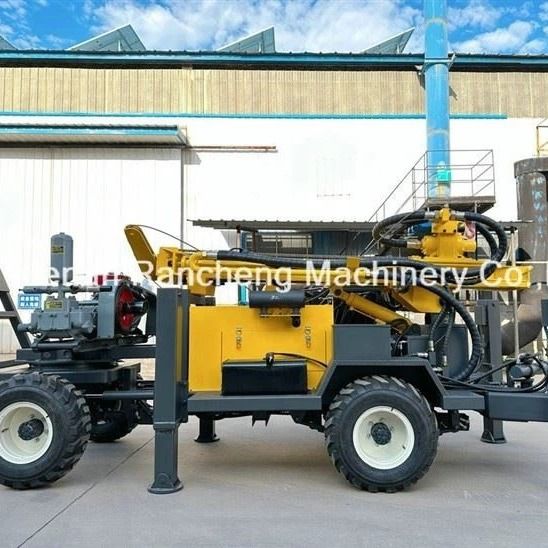

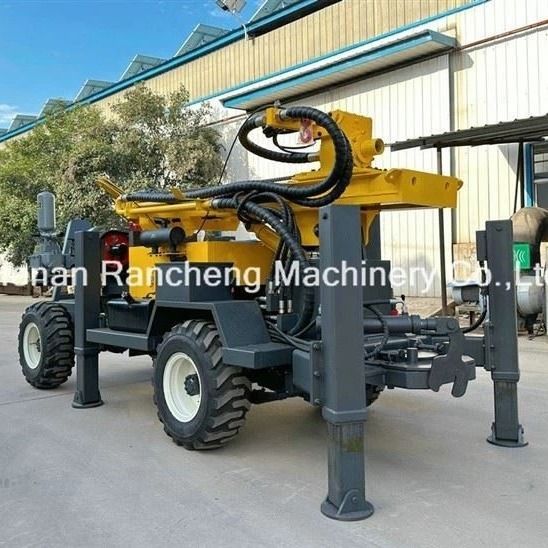

Machine Pictures
