Fully hydraulic 800-meter water well drilling rig
Machine Introduction
This drilling rig is a high-performance piece of equipment specifically designed for deep-hole drilling operations. Its core utilizes a fully hydraulic drive system, matched with a high-torque power head and feed system, delivering powerful output and stepless adjustment of speed and pressure to easily overcome complex geological conditions such as hard rock formations.
The entire machine integrates electro-hydraulic control for centralized and convenient operation, and is equipped with a hydraulic automatic unhooking device, significantly improving drilling efficiency and safety. Employing a modular or vehicle-mounted chassis design, it offers flexible relocation and adaptability to harsh field conditions. Primarily used in large-scale projects such as ultra-deep water wells, geothermal exploration, and mineral exploration, it is an ideal solution for efficiently and reliably completing deep-hole drilling tasks.
Specification
| Model | RC800C |
| Drilling way | Both mud pump drilling and air DTH drilling |
| Geology drilled | All kind |
| Drill system and operation | Hydraulic |
| Diesel engine | 154KW Cummins |
| Max hole depth | 800m |
| Hole diameter |
140-500mm |
| Air consumption |
17-42m³/min |
| Length of drilling pipe | 1m/2m/3m/6m |
| Diameter of drilling pipe |
102/108/114mm |
| Total Weight | 13ton |
| Dimension (L * W * H) |
6300×2300×2650mm |
Applications
1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;
4. big power ensure the deep drilling

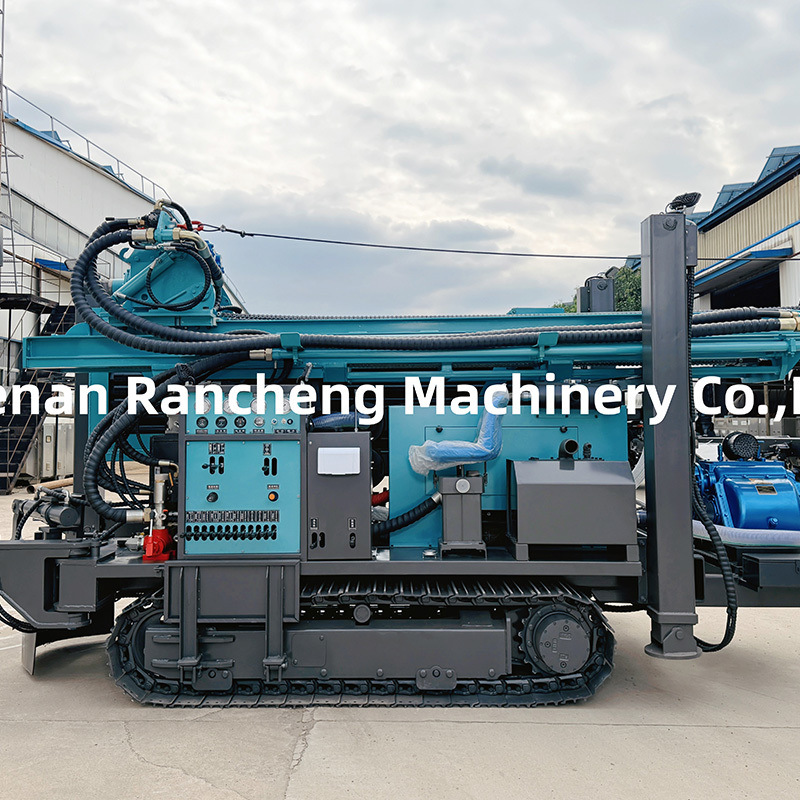

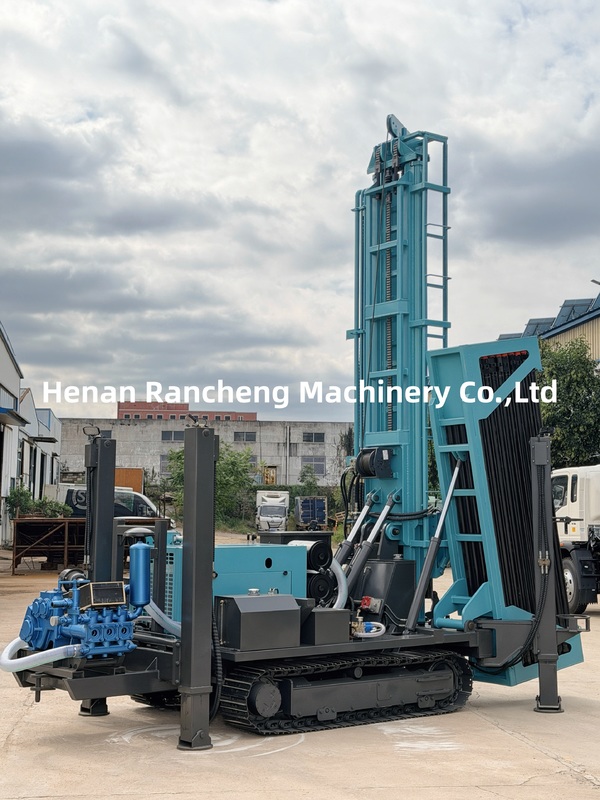

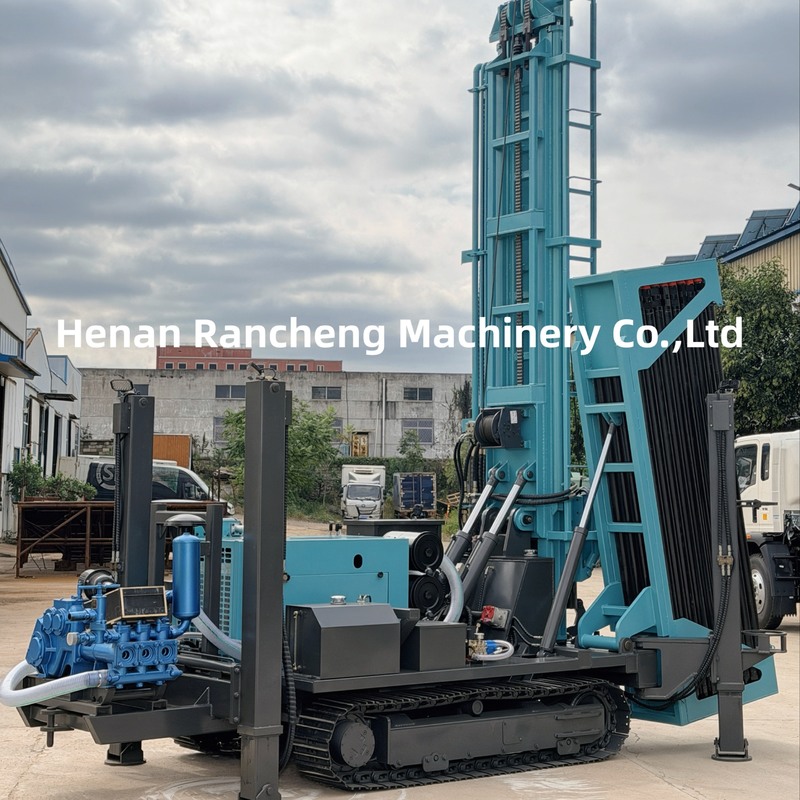

Machine Pictures
