RCS100P Portable Hydraulic Water Well Drilling Rig A Best Selling Model

RCS100P Portable Hydraulic Water Well Drilling Rig A Best Selling Model

portable hydraulic water well drilling rig

best selling water well drilling machine

RCS100P portable drilling rig with warranty

원래 장소:

중국

브랜드 이름:

RanCheng

인증:

CE, ISO 9001:2000

모델 번호:

RCS100P

문의하기
요구 인용문
제품 세부 정보
이름:
휴대용 물 우물 파기 기계
기계 모델:
RCS100P
드릴 파이프 직경:
51mm
드릴 파이프 길이:
1.5m
디젤 엔진:
8HP
펌프 전원:
3.5HP
강조하다:

portable hydraulic water well drilling rig

,

best selling water well drilling machine

,

RCS100P portable drilling rig with warranty

지불 및 배송 조건
최소 주문 수량
1
가격
협상 가능
포장 세부 사항
LCL로 배송 가능
배달 시간
영업일 기준 10-15일
지불 조건
T/T, 서부 동맹
공급 능력
달 당 100sets
관련 제품
문의하기
지금 접촉하세요
제품 설명
RCS100P Portable Hydraulic Water Well Drilling Rig - Best Selling Model
Product Overview

The RCS100P portable hydraulic water well drilling rig is a hydraulically driven drilling system that utilizes advanced hydraulic principles to significantly improve drilling efficiency and performance.

  • Equipped with an 8-horsepower hydraulic motor for powerful operation
  • Power head supports both forward and reverse movement
  • Hydraulic cylinder-equipped drill frame for easy height adjustment
  • Wheeled locomotion system for convenient short-distance transportation
Technical Specifications
Specification Value
Drilling Rig Model RCS100P
Diesel Engine 8HP
Drill Rod Diameter 51mm
Drill Rod Length 1.5m
Rod Change Method Full automatic screw thread
Drilling Depth 100m
Drilling Diameter 100-300mm
Drilling Method Percussive and rotating type
Pump Power 3.5HP
Dimensions 800×800×1700mm
Weight 260kg
Key Features

The RCS100P portable hydraulic water well drilling rig delivers exceptional performance through its advanced hydraulic drive system and versatile design:

  • Hydraulic drive system significantly improves drilling efficiency
  • 8-horsepower hydraulic motor with forward/reverse operation
  • Convenient height adjustment via hydraulic cylinder and control lever
  • Suitable for complex geological formations including mud, quicksand, and rock/soil mixtures
  • Wheeled mobility system for flexible short-distance transportation
Applications

This versatile drilling rig is ideal for various applications including:

  • Civil water wells
  • Geothermal heat pump wells
  • Engineering dewatering wells
  • Drought relief wells
  • Industrial water wells

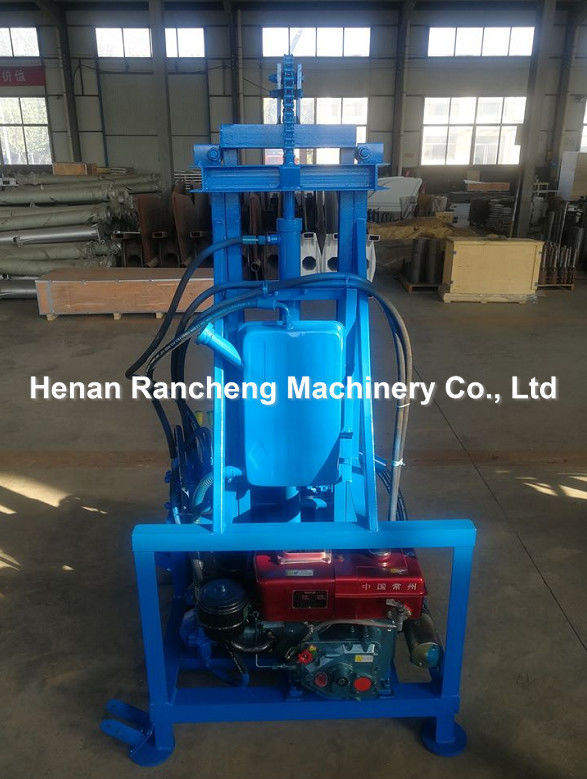

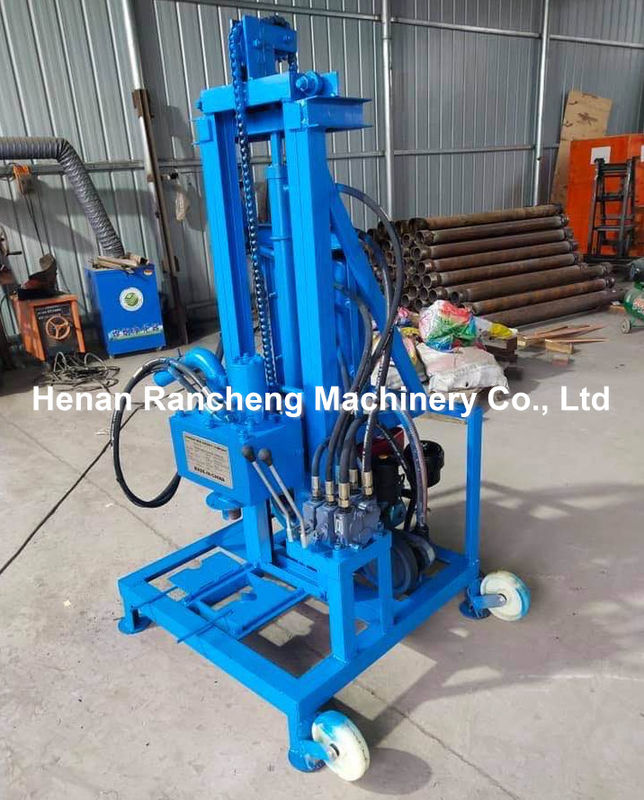

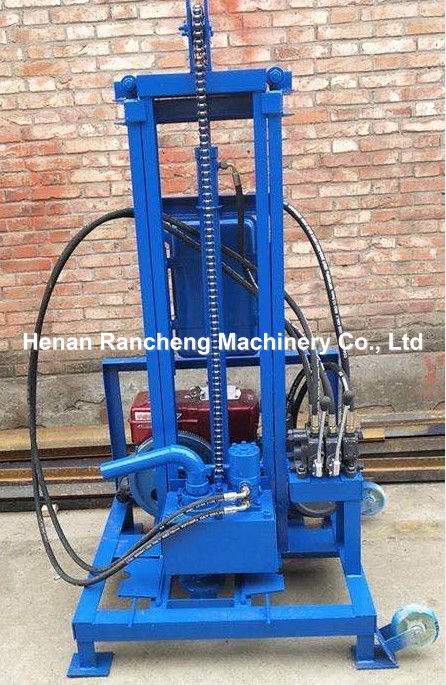

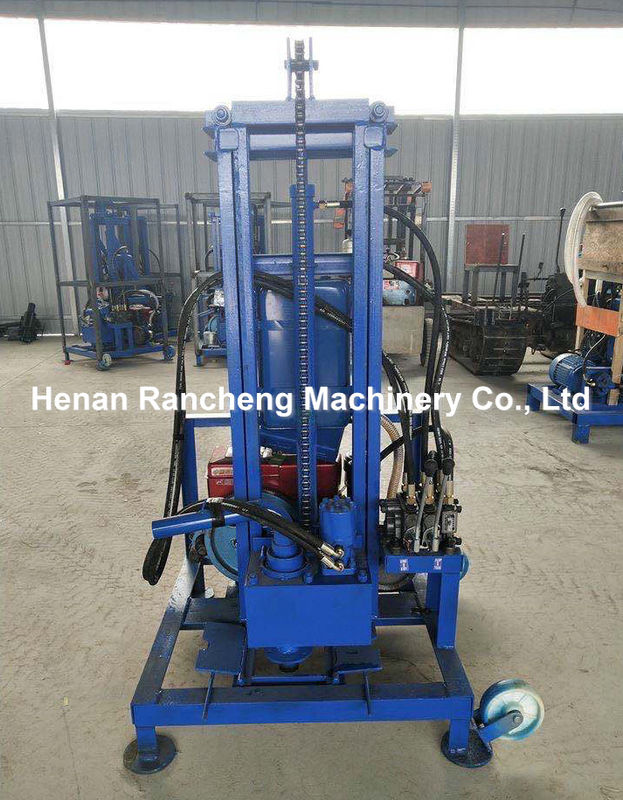

Product Images
RCS100P Portable Hydraulic Water Well Drilling Rig  A Best Selling Model 0 RCS100P Portable Hydraulic Water Well Drilling Rig  A Best Selling Model 1 RCS100P Portable Hydraulic Water Well Drilling Rig  A Best Selling Model 2 RCS100P Portable Hydraulic Water Well Drilling Rig  A Best Selling Model 3
