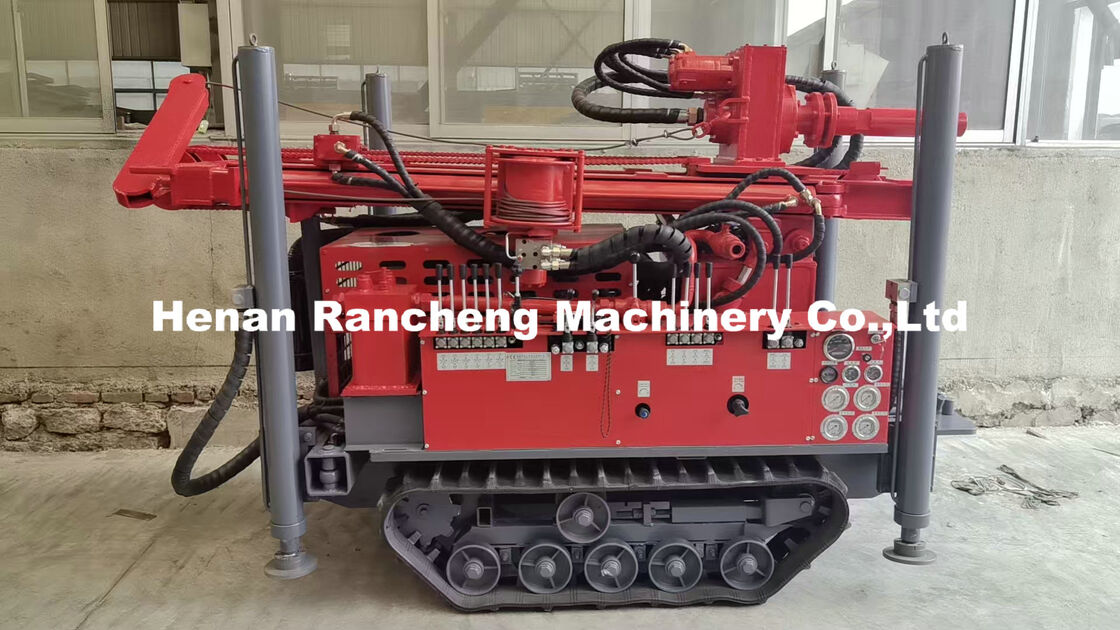

Small Size, Big Power – RCF180S Mini Water Well Drilling Machine
Stop struggling with high fuel bills and stuck drill bits.
Our advanced hydro technology gives you low consumption (save money every hour) and high torque (no more fear of clay or gravel). Plus, easy hole deviation correction means you won't waste time fixing crooked holes.
One machine handles it all: exploration wells, hydrology wells, farm irrigation, or home water supply.
Get more work done with less fuel. That's the RCF180S difference.
Technical Parameters
| Bore diameter(hammer) | 90-300mm |
| Bore depth | 180m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Once-time advance length | 2.4m |
| Pipe diameter | 76mm/89mm |
| Pipe length | 2m |
| Push force | 4T |
| Lifting force | 15T |
| Max torque of rotary | 4000-4600Nm |
| Rotary speed | 45-65r/min |
| Mud Pump flow | 200L/min (option) |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 2300×1200×1900mm |
| weight | 2700kg |
| Diesel engine | 77.3KW Yuchai engine |
Feature:
1,Small size, light weight ,Compact structure,and flexible operation.
this drilling machine weight is only 2700KGS ,the machine size is 2300X1200X2900mm.
2,it is DTH pneumatic water drilling rig ,two motors rotary head ,top driving ,drill with both mud pump and air compressor ,The double rotation motor increased the rotary torque and revolving speed.
3,big powerful and ability ,it use 77.3KW Yuchai engine ,it can drill max 180m depth ,90-300mm borehole.
4,it is rubber crawler mounted type ,easy to move.
5,full hydraulic legs ,very convenient to transport by truck ,very stable in drilling job.
